PDA, M92, 6.19inch HD LCD，Full Touch , Android9 ,MT8768, 4GB+64GB, WWAN, WLAN(WiFi 6), BT, GPS, E3251 Scan engine(Datalogic Decoding license) Barcode

Product Categories

PDA Barcode Scanner [20]
Handheld Barcode Scanner [10]
Industrial Fixed Barcode Scanner [7]
OEM Scan Engine [15]
Desktop Barcode Scanner [6]
PDA Rubber Boot [6]
PDA Charging Dock [8]

Suzhou MobyData Smart System Co. Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

PDA, M92, 6.19inch HD LCD，Full Touch , Android9 ,MT8768, 4GB+64GB, WWAN, WLAN(WiFi 6), BT, GPS, E3251 Scan engine(Datalogic Decoding license) Barcode

Name: PDA M92 619inch HD LCDFull Touch Android9 MT8768 4GB64GB WWAN WLANWiFi 6 BT GPS E3251 Scan engineDatalogic Decoding license Barcode
Brand: MobyData
Price: 1 USD

Buy cheap PDA, M92, 6.19inch HD LCD，Full Touch , Android9 ,MT8768, 4GB+64GB, WWAN, WLAN(WiFi 6), BT, GPS, E3251 Scan engine(Datalogic Decoding license) Barcode product

Brand Name : MobyData

Model Number : M92

Certification : China Certification, CE

Place of Origin : China

MOQ : 1pcs

Price : TBD

Payment Terms : T/T

Supply Ability : 20K pcs per Month

Delivery Time : 7wks days < MOQ500

Packaging Details : Carton

OS : Android 9

CPU : Octa Core, 12nm, 2.0GHz

MEMORY : RAM：2GB/4GB Flash：16GB/64GB

Weight : 238g (With battery)

Dimension : 158mm x 76mm x 14mm

LCD : 6.19”, HD+(720*1500), aspect ratio 19.5:9

NFC : 13.56MHz NFC

Protection Grade : IP65, 1.5m on concrete, 3 times on each side 600 hits of 0.5m tumble

Contact Now

Authorized decoding libraries by Datalogic

Application Area

PDA, M92, 6.19inch HD LCD，Full Touch , Android9 ,MT8768, 4GB+64GB, WWAN, WLAN(WiFi 6), BT, GPS, E3251 Scan engine(Datalogic Decoding license) Barcode

Full screen medical professional PDA equipment

Android 9, support 4G communication, customized Wifi performance
6.19 inch large full screen, high screen ratio
A new generation of ultra-thin image decoding engine, support multi-bar code reading at the same time, 20 lighting
High specification industrial protection 1.5 meters 18 times fall, 600 times 0.5 meters flip, the battery can work normally
Regular version IP65 waterproof and dustproof rating
Medical version IP67 waterproof and dustproof grade, using medical grade materials
Large capacity built-in battery, 15 hours working time
Mobydata software service is supported

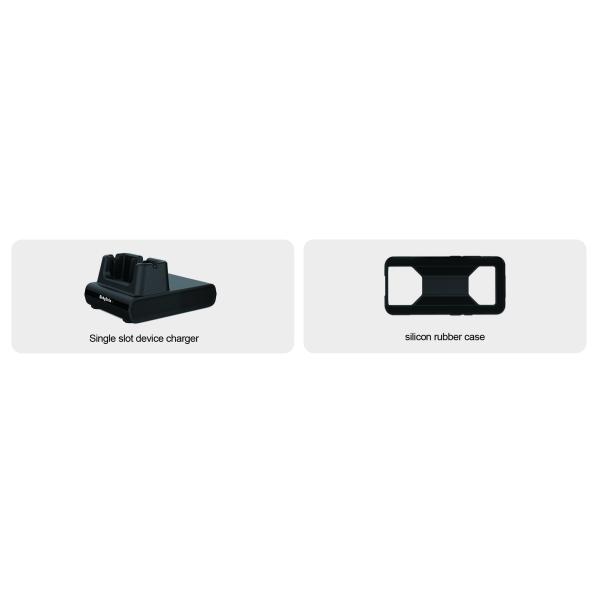

Optional Accessory

PDA, M92, 6.19inch HD LCD，Full Touch , Android9 ,MT8768, 4GB+64GB, WWAN, WLAN(WiFi 6), BT, GPS, E3251 Scan engine(Datalogic Decoding license) Barcode

Product specification

M92 Specifications
OS	Android 9
CPU	2GHz, Octa Core, 12nm
MEMORY	2+16/4+64
Extend Slot	MicroSD, support SDHC, up to 128GB;
Extend Slot	(Nano+Nano or Nano+Micro SD)
PC Communication	USB 2.0 OTG : Type-C；
Sensers	Light, Proximity, Hall, 3D G sensor, Gyroscope,compass
LED	Charging, Scan and System stauts
Charging Time	≤3.5 hours(Room Temperature)
Charging Time	≤4 hours(35 ℃)
Operation Duration	19 hours

PostData Collection
Scan Engine	Megapixel versions of Mobydata E3250
2D	Aztec Code; China Han Xin Code; Data Matrix; MaxiCode
	Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
	GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
	GS1 DataBar Stacked Omnidirectional; MacroPDF;
	MicroPDF417; PDF417; UPC A/E Composites;Digimarc(E3250 supports)
1D	Auto discriminates all standard 1D codes including GS1,code39,code 128,code93
1D	DataBar™ linear codes.
Post	Australian Post; British Post; China Post; IMB; Japanese
	Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
	Mail Code (RM4SCC)
NFC(Optional)	13.56MHz NFC

Wireless Connectivity
WLAN	802.11 ac/a/b/g/n
WWAN	TDD-LTE (B40/B41/B38/B39)
	FDD-LTE (B20/B5/B8/B3/B1/B7)
	UMTS/HSDPA/HSPA/HSPA+ (B1/B8/B5)
	GSM (850/900/1800 MHz)
VoLTE	LTE CAT6
CA	Downlink 300Mbps, B1/B3/B7/B40/B41
WPAN	BT 5.0
GPS	GPS/A-GPS, GLONASS, Beidou

Physical Specifications
LCD	6.19 ”,HD+(720*1500),aspect ratio 19.5:9
Touch	Capacitive screen, High strength glass
Camera	Auto focus, front 5Mega, real 13Mega, with flash LED
Keypad	Left/Right Scan Key, Vol+/Vol- Key, Power Key
Reciver	Support
Speaker	Min 90db at 10cm-1KHz Voice
Mic	Double Mic with Noise Reduction
Charging IO	USB type-C
Battery	No Removable 4600mAh
Dimension	158mm x 76mm x 14mm
Weight	238g (With battery)

Environmental Specifications
Operation Temperature	-25°C ~ +55°C
Storage Temperature	-30°C ~ +70°C
Humidity	10% ~ 90%
Drop	1.5m on concrete
Tumble	300 hits @ 0.5m tumbles to steel plate
IP	IP67
ESD	± 8 kV contact discharge, ± 15 kV air discharge,
Keypad lifecycle	100K

Accessories
Battery	No Removable 4600mAh

Gift Box
Gift Box	Device, Protective sheath, QSG, Adapter, USB cable, Steel film

FAQ
1. Are you a manufacturer?
Yes, we are. As a professional manufacturer specializing in barcode scanners and PDA terminals, we possess deep expertise in industrial design, mainboard development, product testing, and full-scale production. We enforce rigorous quality control across all operational processes, ensuring our products consistently meet the highest industry standards.

2. Will you provide free SDK for me?
Certainly

3. What is the warranty period for your products?
Our products come with a Min. 12-month warranty (starting from the date of shipment), excluding parts that are consumable.

4. What is your minimum order quantity (MOQ)?
The standard MOQ for stock products is 1 unit. For OEM/ODM projects, please provide your detailed requirements (e.g., customization scope, specifications), and we will advise the corresponding MOQ based on your needs.

5. Is it possible to obtain a free sample?
While we do not offer free samples, we welcome you to purchase a single sample unit for testing and evaluation.

6. Do you accept payments via PayPal?
No

7. How long is the delivery time?
For sample orders, we usually dispatch within 2-3 working days after payment has been confirmed. For bulk orders, the lead time may vary from 1 to 4 weeks, depending on the exact quantity required.

8. What shipping methods do you use for delivery?
DHL, UPS, TNT, FEDEX, Aramex, EMS, and E-packing, or arrange the collection of goods yourself.

9. Could you describe your after-sales service?
a. All products come with a minimum 12-month warranty (extendable for certain

components), covering manufacturing defects and non-consumable parts.

b. We maintain a large inventory of genuine spare parts to ensure prompt replacement or repair of service requests, minimizing downtime for your operations.

c. Our team of certified engineers provides 24/7 online support (via phone, email, or remote access) to address troubleshooting, software updates, and operational guidance.

d. For complex issues, we can offer on-site service support (subject to regional availability) and customized maintenance plans to meet your specific needs.
